Product Code | Perimeter Range | Height |
160 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
TDBM800 | 0-800 | | | | | | | | | | |
TDBM1200 | 801-1200 | | | | | | | | | | |
TDBM1600 | 1201-1600 | | | | | | | | | | |
TDBM2000 | 1601-2000 | | | | | | | | | | |
TDBM2400 | 2001-2400 | | | | | | | | | | |
TDBM2800 | 2401-2800 | | | | | | | | | | |
TDBM3200 | 2801-3200 | | | | | | | | | | |
TDBM3500 | 3201-3500 | | | | | | | | | | |
TDBM3800 | 3501-3800 | | | | | | | | | | |
TDBM4100 | 3801-4100 | | | | | | | | | | |
TDBM4400 | 4101-4400 | | | | | | | | | | |
TDBM4700 | 4401-4700 | | | | | | | | | | |
TDBM5000 | 4701-5000 | | | | | | | | | | |
TDBM5300 | 5001-5300 | | | | | | | | | | |
TDBM5600 | 5301-5600 | | | | | | | | | | |

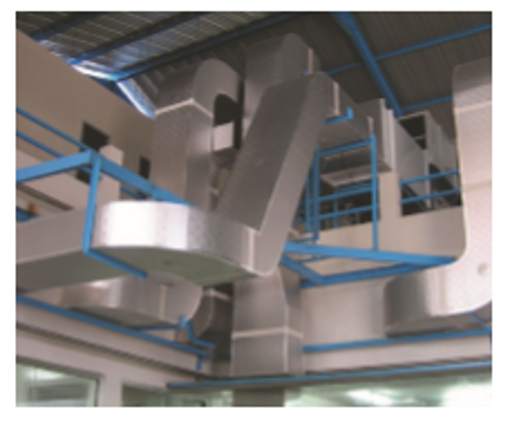

BOX – Manufactured
• Please specify Size (Dia), location & number of spigots (price includes a maximum of two spigots. Refer to ancillary section for additional catellated collar price).
• All opening dimensions will be assumed as internal sizes unless otherwise stated.
• All heights will be assumed as overall unless otherwise stated
• No extrusions will be supplied unless requested. If required, H Extrusion is standard for all boxes unless specified otherwise.
• The allowance for spigots will be based on ovalised spigots (where required) unless specified.
• If spigot sizes required do not fit in the specified box size the box will automatically be made as a blown box & the price adjusted accordingly.
• All blown boxes will have central openings.
